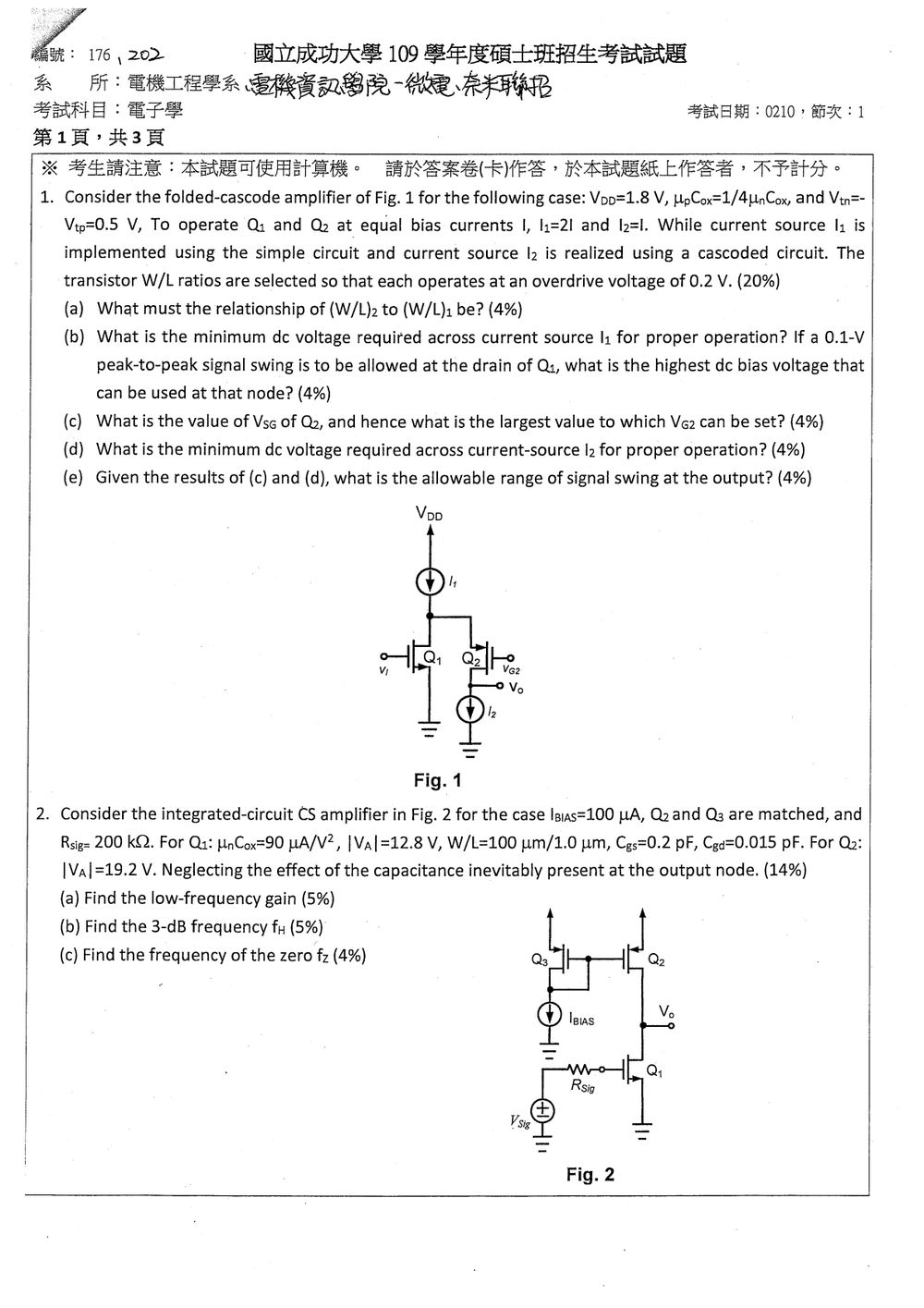

Consider the folded-cascode amplifier of Fig. 1 for the following case: $V_{DD}=1.8$ V, $\mu_n C_{ox}=1/4 \mu_n C_{ox}$, and $V_{tn}=-V_{tp}=0.5$ V. To operate $Q_1$ and $Q_2$ at equal bias currents $I_{1}=I_{2}=I$, where $I=2I$ and $I_2=I$. While current source $I_1$ is implemented using the simple circuit and current source $I_2$ is realized using a cascoded circuit. The transistor W/L ratios are selected so that each operates at an overdrive voltage of $0.2$ V. (20%)

(a) What must the relationship of $(W/L)_2$ to $(W/L)_1$ be? (4%)
(b) What is the minimum dc voltage required across current source $I_1$ for proper operation? If a $0.1$-V peak-to-peak signal swing is to be allowed at the drain of $Q_1$, what is the highest dc bias voltage that can be used at that node? (4%)
(c) What is the value of $V_{SG}$ of $Q_2$, and hence what is the largest value to which $V_{G2}$ can be set? (4%)
(d) What is the minimum dc voltage required across current-source $I_2$ for proper operation? (4%)
(e) Given the results of (c) and (d), what is the allowable range of signal swing at the output? (4%)

🖼️【此處有附圖，請對照原卷】

Consider the integrated-circuit CS amplifier in Fig. 2 for the case $I_{BIAS}=100$ µA, $Q_2$ and $Q_3$ are matched, and $R_{sig}=200$ kΩ. For $Q_1$: $\mu_n C_{ox}=90$ µA/V$^2$, $|V_A|=12.8$ V, $W/L=100$ µm/1.0 µm, $C_{gs}=0.2$ pF, $C_{gd}=0.015$ pF. For $Q_2$: $|V_A|=19.2$ V. Neglecting the effect of the capacitance inevitably present at the output node. (14%)

(a) Find the low-frequency gain (5%)
(b) Find the 3-dB frequency $f_H$ (5%)
(c) Find the frequency of the zero $f_Z$ (4%)

🖼️【此處有附圖，請對照原卷】

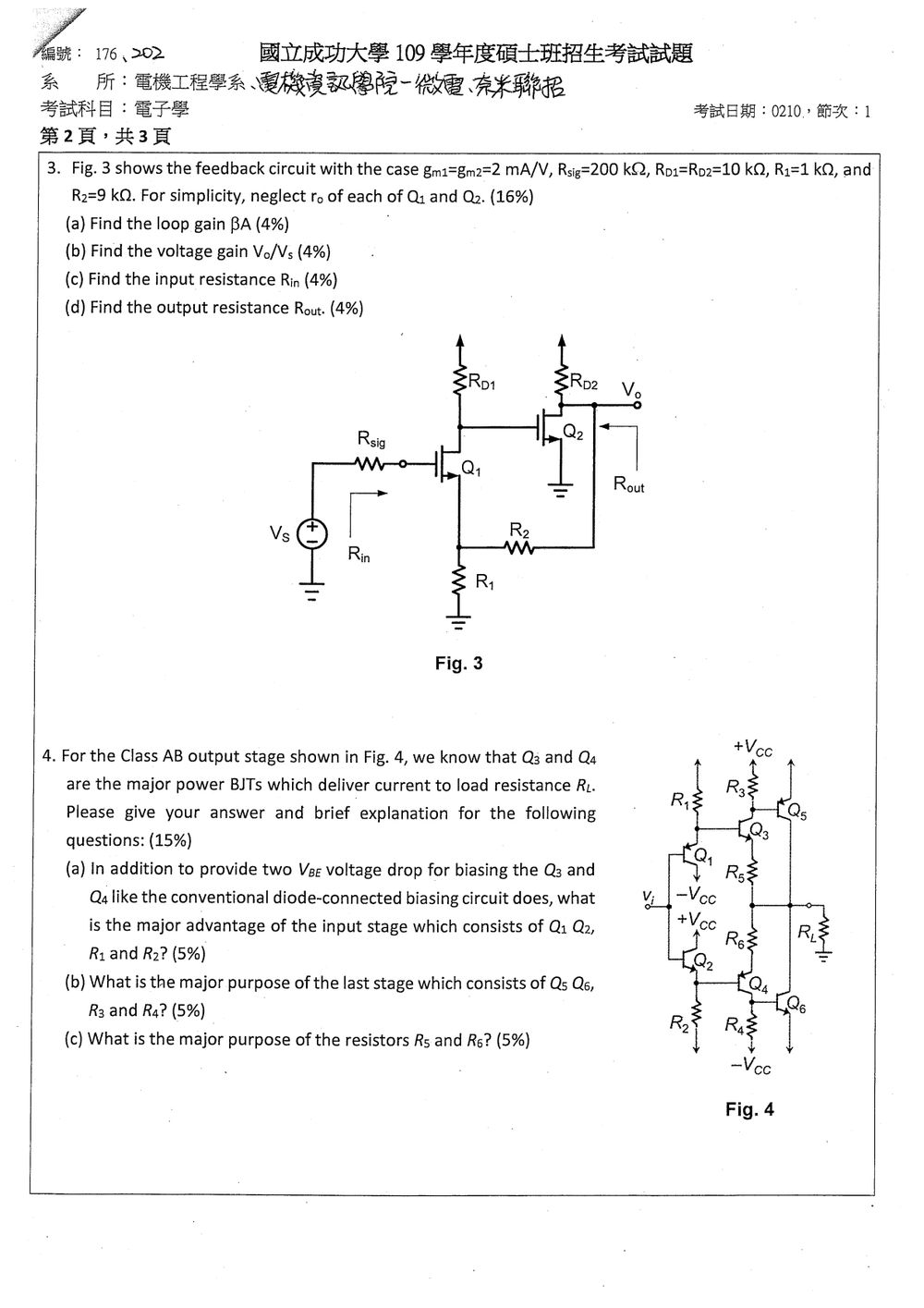

Fig. 3 shows the feedback circuit with the case $g_{m1}=g_{m2}=2$ mA/V, $R_{sig}=200$ kΩ, $R_{D1}=R_{D2}=10$ kΩ, $R_1=1$ kΩ, and $R_2=9$ kΩ. For simplicity, neglect $r_o$ of each of $Q_1$ and $Q_2$. (16%)

(a) Find the loop gain $\beta A$ (4%)
(b) Find the voltage gain $V_o/V_s$ (4%)
(c) Find the input resistance $R_{in}$ (4%)
(d) Find the output resistance $R_{out}$ (4%)

🖼️【此處有附圖，請對照原卷】

For the Class AB output stage shown in Fig. 4, we know that $Q_3$ and $Q_4$ are the major power BJTs which deliver current to load resistance $R_L$. Please give your answer and brief explanation for the following questions: (15%)

(a) In addition to provide two $V_{BE}$ voltage drop for biasing the $Q_3$ and $Q_4$ like the conventional diode-connected biasing circuit does, what is the major advantage of the input stage which consists of $Q_1, Q_2, R_1$ and $R_2$? (5%)
(b) What is the major purpose of the last stage which consists of $Q_5, Q_6, R_3$ and $R_4$? (5%)
(c) What is the major purpose of the resistors $R_5$ and $R_6$? (5%)

🖼️【此處有附圖，請對照原卷】

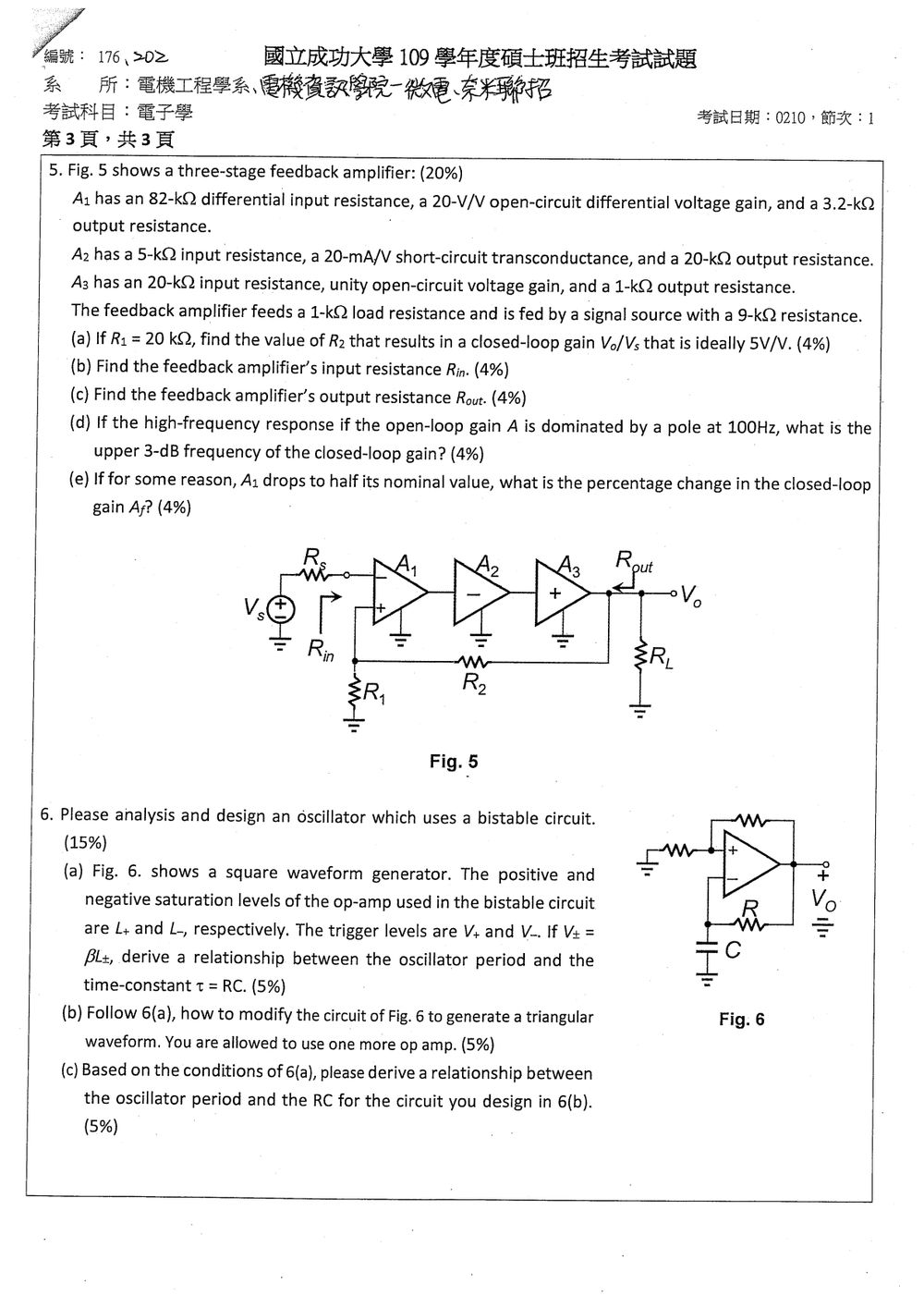

Fig. 5 shows a three-stage feedback amplifier: (20%)

$A_1$ has an 82-kΩ differential input resistance, a 20-V/V open-circuit differential voltage gain, and a 3.2-kΩ output resistance.
$A_2$ has a 5-kΩ input resistance, a 20-mA/V short-circuit transconductance, and a 20-kΩ output resistance.
$A_3$ has an 20-kΩ input resistance, unity open-circuit voltage gain, and a 1-kΩ output resistance.
The feedback amplifier feeds a 1-kΩ load resistance and is fed by a signal source with a 9-kΩ resistance.

(a) If $R_1 = 20$ kΩ, find the value of $R_2$ that results in a closed-loop gain $V_o/V_s$ that is ideally 5V/V. (4%)
(b) Find the feedback amplifier's input resistance $R_{in}$. (4%)
(c) Find the feedback amplifier's output resistance $R_{out}$. (4%)
(d) If the high-frequency response if the open-loop gain $A$ is dominated by a pole at 100Hz, what is the upper 3-dB frequency of the closed-loop gain? (4%)
(e) If for some reason, $A_1$ drops to half its nominal value, what is the percentage change in the closed-loop gain $A_f$? (4%)
