109 年 國立中正大學電機工程學系碩士班電力與電能處理甲組《控制系統》

📄 試題原卷 免費註冊後即可對照原始考卷 PDF免費註冊

第 1 題30 分

  1. (30%) The block diagram of a feedback control system is shown in the figure.
    🖼️【此處有附圖,請對照原卷】
    (a) Derive the following transfer functions:
    Y(s)D(s)∣R=0\frac{Y(s)}{D(s)}|_{R=0}
    Y(s)R(s)∣D=0\frac{Y(s)}{R(s)}|_{D=0}
    (b) Find T(s)T(s) such that the output Y(s)Y(s) is totally independent of D(s)D(s).
    (c) Find the value of KK so that the steady-state error is zero when the input is r(t)=u(t)r(t) = u(t) (unit step) and T(s)T(s) is as determined in part (b).
🖼️ 本題含圖表,以下為原卷對應頁面:

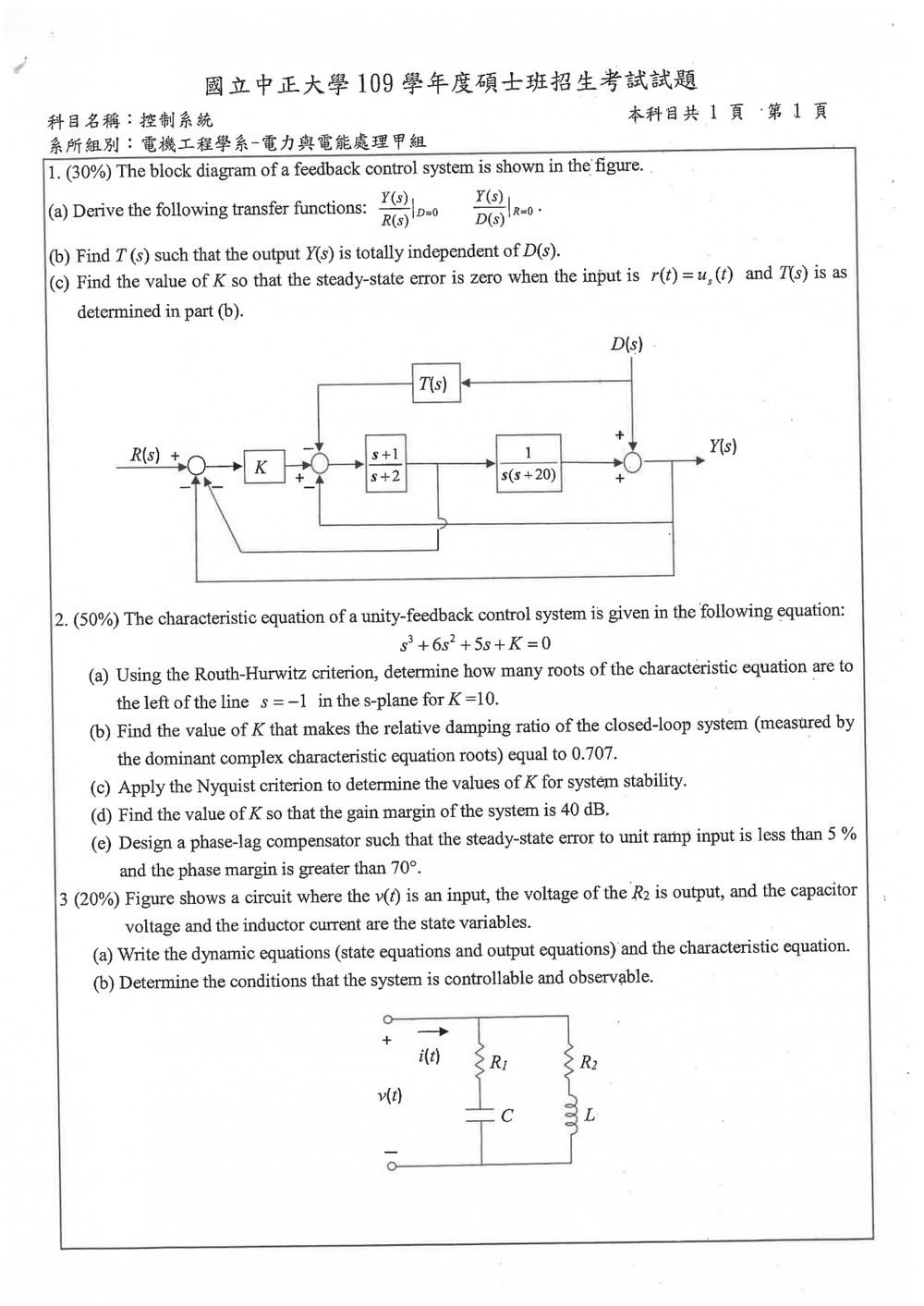

原卷第 2 頁

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

令

G1(s)=s+1s+2,G2(s)=1s(s+20).G_1(s)=\frac{s+1}{s+2},\qquad G_2(s)=\frac{1}{s(s+20)}.

由圖可定義:

  • x(s)x(s):G1(s)G_1(s) 的輸出。
  • 第一個加總點輸出為 e(s)e(s)。
  • 第二個加總點輸出為 v(s)v(s)。

依照圖中的正負號:

e(s)=R(s)−Y(s)−x(s)e(s)=R(s)-Y(s)-x(s) v(s)=Ke(s)−T(s)D(s)+x(s)v(s)=K e(s)-T(s)D(s)+x(s) x(s)=G1(s)v(s)x(s)=G_1(s)v(s) Y(s)=G2(s)x(s)+D(s)Y(s)=G_2(s)x(s)+D(s)

解題方法

先以 x(s)x(s) 表示所有訊號,再分別求出 Y(s)/R(s)Y(s)/R(s) 與 Y(s)/D(s)Y(s)/D(s)。

由

e=R−Y−xe=R-Y-x

且

Y=G2x+DY=G_2x+D

可得

e=R−D−(1+G2)x.e=R-D-(1+G_2)x.

代入第二個加總點:

x=G1[K{R−D−(1+G2)x}−TD+x].x=G_1\left[K\{R-D-(1+G_2)x\}-TD+x\right].

整理得

[1−G1+KG1(1+G2)]x=KG1R−G1(K+T)D.\left[1-G_1+KG_1(1+G_2)\right]x = KG_1R-G_1(K+T)D.

令

Δ(s)=1−G1+KG1(1+G2).\Delta(s)=1-G_1+KG_1(1+G_2).

因此

x(s)=KG1(s)Δ(s)R(s)−G1(s)[K+T(s)]Δ(s)D(s).x(s)=\frac{KG_1(s)}{\Delta(s)}R(s) -\frac{G_1(s)[K+T(s)]}{\Delta(s)}D(s).

又因為 Y=G2x+DY=G_2x+D,所以可求得所需轉移函數。

(a) 求兩個轉移函數

當 D=0D=0 時:

Y(s)R(s)∣D=0=KG1G21−G1+KG1(1+G2)\boxed{ \left.\frac{Y(s)}{R(s)}\right|_{D=0} = \frac{KG_1G_2} {1-G_1+KG_1(1+G_2)} }

代入 G1,G2G_1,G_2:

Y(s)R(s)∣D=0=K(s+1)Ks3+(20K+1)s2+(K+20)s+K.\left.\frac{Y(s)}{R(s)}\right|_{D=0} = \frac{K(s+1)} {K s^3+(20K+1)s^2+(K+20)s+K}.

當 R=0R=0 時:

Y(s)D(s)∣R=0=1−G1+KG1−G1G2T1−G1+KG1(1+G2)\boxed{ \left.\frac{Y(s)}{D(s)}\right|_{R=0} = \frac{1-G_1+KG_1-G_1G_2T} {1-G_1+KG_1(1+G_2)} }

代入 G1,G2G_1,G_2 後,也可寫成

Y(s)D(s)∣R=0=s(s+20)+K(s+1)s(s+20)−(s+1)T(s)Ks3+(20K+1)s2+(K+20)s+K.\left.\frac{Y(s)}{D(s)}\right|_{R=0} = \frac{ s(s+20)+K(s+1)s(s+20)-(s+1)T(s) }{ K s^3+(20K+1)s^2+(K+20)s+K }.

(b) 使輸出完全不受 D(s)D(s) 影響

要使 Y(s)Y(s) 完全獨立於 D(s)D(s),必須令 D→YD\to Y 的轉移函數分子為零:

1−G1+KG1−G1G2T=0.1-G_1+KG_1-G_1G_2T=0.

因此

T(s)=1−G1+KG1G1G2.T(s)=\frac{1-G_1+KG_1}{G_1G_2}.

代入 G1,G2G_1,G_2:

🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊

第 2 題50 分

  1. (50%) The characteristic equation of a unity-feedback control system is given in the following equation:
    s3+6s2+5s+K=0s^3 + 6s^2 + 5s + K = 0
    (a) Using the Routh-Hurwitz criterion, determine how many roots of the characteristic equation are to the left of the line s=−1s = -1 in the s-plane for K=10K=10.
    (b) Find the value of KK that makes the relative damping ratio of the closed-loop system (measured by the dominant complex characteristic equation roots) equal to 0.707.
    (c) Apply the Nyquist criterion to determine the values of KK for system stability.
    (d) Find the value of KK so that the gain margin of the system is 40 dB.
    (e) Design a phase-lag compensator such that the steady-state error to unit ramp input is less than 5% and the phase margin is greater than 70°.
🖼️ 本題含圖表,以下為原卷對應頁面:
原卷第 2 頁

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

由特性方程式

s3+6s2+5s+K=0s^3+6s^2+5s+K=0

可辨識其未補償開迴路傳遞函數為

G0(s)=1s(s+1)(s+5)G_0(s)=\frac{1}{s(s+1)(s+5)}

因此含增益 KK 的迴路傳遞函數為

L(s)=Ks(s+1)(s+5).L(s)=\frac{K}{s(s+1)(s+5)}.

本題考查:

  • Routh-Hurwitz 判據與平移後的穩定性判斷。
  • 阻尼比 ζ\zeta 與根軌跡。
  • Nyquist 穩定判據。
  • Gain margin 的定義。
  • Phase-lag compensator 對穩態誤差與相位裕度的影響。

(a) 求位於直線 s=−1s=-1 左側的根數

令

s=z−1s=z-1

使得 s=−1s=-1 對應於 z=0z=0。代入特性方程式:

(z−1)3+6(z−1)2+5(z−1)+10=0(z-1)^3+6(z-1)^2+5(z-1)+10=0

整理得

z3+3z2−4z+10=0.z^3+3z^2-4z+10=0.

對此方程式建立 Routh 表:

z31−4z2310z13(−4)−103=−2230z010\begin{array}{c|cc} z^3 & 1 & -4\\ z^2 & 3 & 10\\ z^1 & \dfrac{3(-4)-10}{3}=-\dfrac{22}{3} & 0\\ z^0 & 10 & \end{array}

第一欄符號為

+,+,−,+.+,\quad +,\quad -,\quad +.

符號變化次數為 22,因此有 22 個根位於 zz 平面的右半部,也就是位於原本 ss 平面的直線 s=−1s=-1 右側。

總共有 33 個根,因此位於 s=−1s=-1 左側的根數為

3−2=1.3-2=1.

(b) 使主導複數根的阻尼比為 0.7070.707

阻尼比為

ζ=−Re⁡(s)∣s∣.\zeta=\frac{-\operatorname{Re}(s)}{|s|}.

當

ζ=0.707≈12\zeta=0.707\approx \frac{1}{\sqrt{2}}

時,複數根位於 45∘45^\circ 阻尼比線上,因此可令

s=−a+ja,a>0.s=-a+ja,\qquad a>0.

由特性方程式可得

K=−s(s+1)(s+5).K=-s(s+1)(s+5).

先令 s=−a+jas=-a+ja,計算 s(s+1)(s+5)s(s+1)(s+5) 的虛部。由虛部必須為零:

2a3−12a2+5a=0.2a^3-12a^2+5a=0.

排除 a=0a=0,得

2a2−12a+5=0.2a^2-12a+5=0.

因此

a=3±262.a=3\pm \frac{\sqrt{26}}{2}.

為使 K>0K>0,取

a=3−262≈0.4505.a=3-\frac{\sqrt{26}}{2}\approx 0.4505.

此時

K=a(5−2a2).K=a(5-2a^2).

代入數值:

K≈0.4505[5−2(0.4505)2]≈2.07.K\approx 0.4505\left[5-2(0.4505)^2\right] \approx 2.07.

複數根約為

s1,2=−0.4505±j0.4505.s_{1,2}=-0.4505\pm j0.4505.

第三根由根之和為 −6-6 得

s3=−6−2(−0.4505)≈−5.099,s_3=-6-2(-0.4505)\approx -5.099,

故複數根確實為主導根。


(c) 使用 Nyquist 判據求系統穩定的 KK 範圍

由 Routh-Hurwitz 判據,原特性方程式

s3+6s2+5s+K=0s^3+6s^2+5s+K=0

的 Routh 表為

s315s26Ks130−K60s0K\begin{array}{c|cc} s^3 & 1 & 5\\ s^2 & 6 & K\\ s^1 & \dfrac{30-K}{6} & 0\\ s^0 & K & \end{array}

系統穩定時,第一欄必須全部為正:

1>0,6>0,30−K6>0,K>0.1>0,\qquad 6>0,\qquad \frac{30-K}{6}>0,\qquad K>0.

因此

0<K<30.0<K<30.

以 Nyquist 觀點驗算,開迴路為

L(s)=Ks(s+1)(s+5).L(s)=\frac{K}{s(s+1)(s+5)}.

相位穿越頻率滿足

−90∘−tan⁡−1ω−tan⁡−1ω5=−180∘.-90^\circ-\tan^{-1}\omega-\tan^{-1}\frac{\omega}{5}=-180^\circ.

所以

tan⁡−1ω+tan⁡−1ω5=90∘,\tan^{-1}\omega+\tan^{-1}\frac{\omega}{5}=90^\circ,

得到

ωpc=5.\omega_{pc}=\sqrt{5}.

在此頻率下,

∣G0(jωpc)∣=15630=130.\left|G_0(j\omega_{pc})\right| = \frac{1}{\sqrt{5}\sqrt{6}\sqrt{30}} =\frac{1}{30}.

Nyquist 曲線通過 −1-1 的臨界條件為

🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊

第 3 題20 分

  1. (20%) Figure shows a circuit where the v(t)v(t) is an input, the voltage of the R2R_2 is output, and the capacitor voltage and the inductor current are the state variables.
    🖼️【此處有附圖,請對照原卷】
    (a) Write the dynamic equations (state equations and output equations) and the characteristic equation.
    (b) Determine the conditions that the system is controllable and observable.
🖼️ 本題含圖表,以下為原卷對應頁面:
原卷第 2 頁

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

本題考查二階電路的狀態空間表示法,以及線性系統的可控制性與可觀測性。

選定狀態變數為

x1(t)=vC(t),x2(t)=iL(t)x_1(t)=v_C(t),\qquad x_2(t)=i_L(t)

輸入為

u(t)=v(t)u(t)=v(t)

根據圖示,左支路為 R1R_1 與 CC 串聯,右支路為 R2R_2 與 LL 串聯;輸出為電阻 R2R_2 兩端電壓。


解題方法

(a) 狀態方程、輸出方程與特徵方程

電容支路

由 KVL,R1R_1 上的電流為

iC(t)=v(t)−vC(t)R1i_C(t)=\frac{v(t)-v_C(t)}{R_1}

又因為

iC(t)=CdvC(t)dti_C(t)=C\frac{dv_C(t)}{dt}

因此

dvC(t)dt=−1R1CvC(t)+1R1Cv(t)\frac{dv_C(t)}{dt} = -\frac{1}{R_1C}v_C(t)+\frac{1}{R_1C}v(t)

即

x˙1=−1R1Cx1+1R1Cu\dot{x}_1 = -\frac{1}{R_1C}x_1+\frac{1}{R_1C}u

電感支路

右支路適用 KVL:

v(t)=R2iL(t)+LdiL(t)dtv(t)=R_2i_L(t)+L\frac{di_L(t)}{dt}

因此

diL(t)dt=−R2LiL(t)+1Lv(t)\frac{di_L(t)}{dt} = -\frac{R_2}{L}i_L(t)+\frac{1}{L}v(t)

即

x˙2=−R2Lx2+1Lu\dot{x}_2 = -\frac{R_2}{L}x_2+\frac{1}{L}u

所以狀態方程為

x˙=Ax+Bu\dot{x} = Ax+Bu

其中

x=[x1x2],A=[−1R1C00−R2L],B=[1R1C1L]x= \begin{bmatrix} x_1\\ x_2 \end{bmatrix}, \qquad A= \begin{bmatrix} -\dfrac{1}{R_1C} & 0\\ 0 & -\dfrac{R_2}{L} \end{bmatrix}, \qquad B= \begin{bmatrix} \dfrac{1}{R_1C}\\ \dfrac{1}{L} \end{bmatrix}

輸出為 R2R_2 兩端電壓:

y(t)=R2iL(t)=R2x2(t)y(t)=R_2i_L(t)=R_2x_2(t)

因此

y=Cx+Duy=Cx+Du

其中

C=[0R2],D=0C= \begin{bmatrix} 0 & R_2 \end{bmatrix}, \qquad D=0

特徵方程

特徵方程由

det⁡(sI−A)=0\det(sI-A)=0

得到

det⁡[s+1R1C00s+R2L]=0\det \begin{bmatrix} s+\dfrac{1}{R_1C} & 0\\ 0 & s+\dfrac{R_2}{L} \end{bmatrix} =0

因此

(s+1R1C)(s+R2L)=0\boxed{ \left(s+\frac{1}{R_1C}\right) \left(s+\frac{R_2}{L}\right)=0 }

展開為

s2+(1R1C+R2L)s+R2R1CL=0\boxed{ s^2+ \left(\frac{1}{R_1C}+\frac{R_2}{L}\right)s +\frac{R_2}{R_1CL}=0 }

(b) 可控制性與可觀測性

可控制性

二階系統的可控制性矩陣為

C=[BAB]\mathcal{C} = \begin{bmatrix} B & AB \end{bmatrix}

令

a=1R1C,b=R2La=\frac{1}{R_1C}, \qquad b=\frac{R_2}{L}

則

🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊
