109 年 國立成功大學航空太空工程學系碩士班丙組《自動控制》

📄 試題原卷 免費註冊後即可對照原始考卷 PDF免費註冊

第 1 題

Suppose that the design of a turning control for a tracked vehicle involves the selection of two parameters aa and KK. The control block diagram is shown below.
🖼️【此處有附圖,請對照原卷】
The block diagram shows a closed-loop system with a controller Gc(s)=s+as+1G_c(s) = \frac{s+a}{s+1} and a plant P(s)=Ks(s+2)(s+5)P(s) = \frac{K}{s(s+2)(s+5)}. The feedback is unity. The input is R(s)R(s) and the output is Y(s)Y(s).

(a). Please sketch the feasible region of aa and KK. so that the system is stable.
(b). Provide the condition for the selection of aa and KK so that the steady state is 24% of the magnitude of the command r(t)r(t), where r(t)=Atr(t) = At and AA is a constant.
(c). For a=10a=10, please draw the root locus.
(d). Based on (c), please find the break-in or break-away point if exists.
(e). Based on (c), please find the gain KK such that the system oscillates.

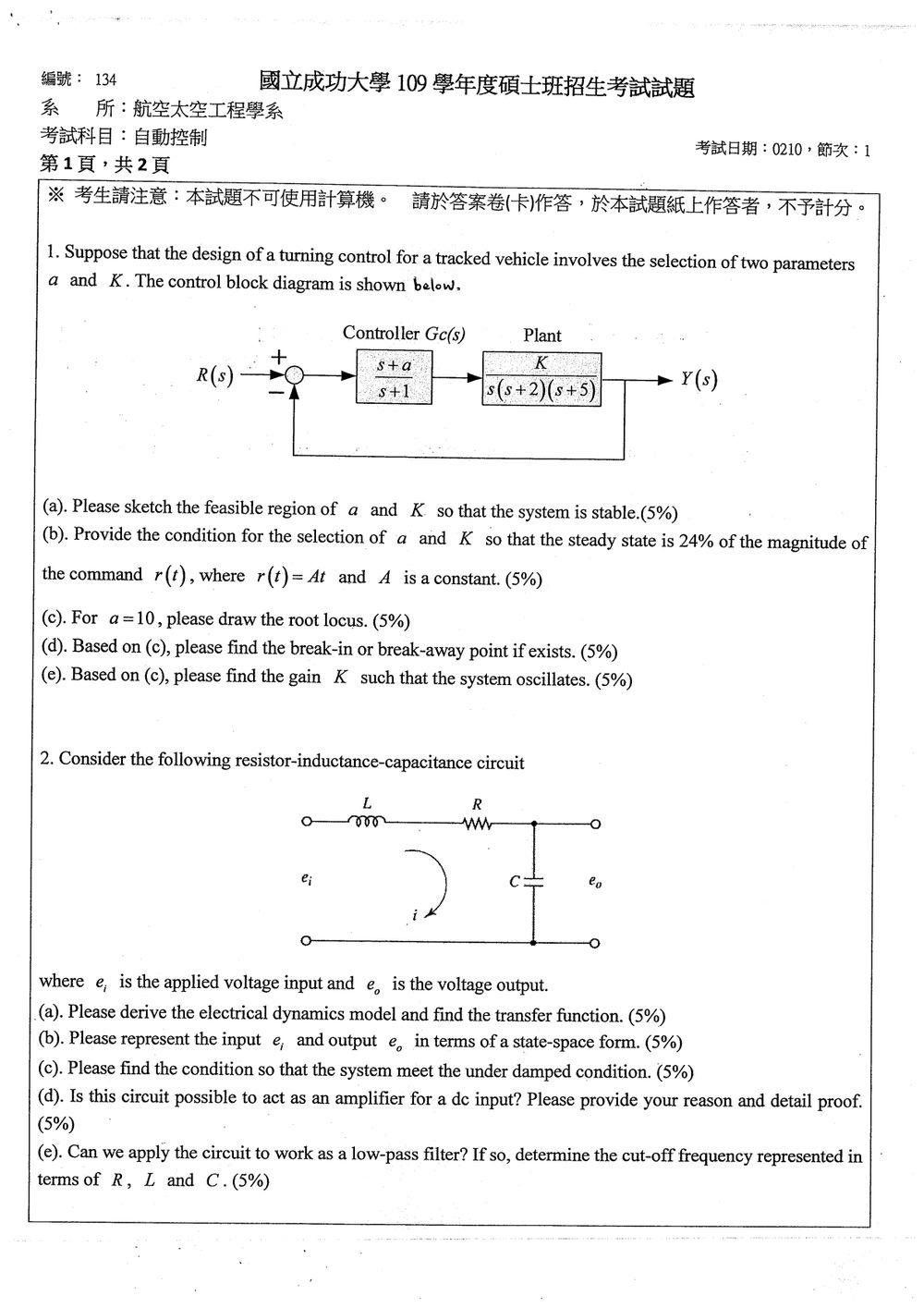

🖼️ 本題含圖表,以下為原卷對應頁面:
原卷第 1 頁

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

本題考查:

  • 閉迴路特徵方程式與 Routh–Hurwitz 穩定判據
  • I 型系統對斜坡輸入的穩態誤差
  • 根軌跡的實軸區段、漸近線、分離點與進入點
  • 根軌跡穿越虛軸時的臨界增益

開迴路傳遞函數為

L(s)=Gc(s)P(s)=K(s+a)s(s+1)(s+2)(s+5).L(s)=G_c(s)P(s) =\frac{K(s+a)}{s(s+1)(s+2)(s+5)}.

因此閉迴路特徵方程式為

1+L(s)=01+L(s)=0

即

s(s+1)(s+2)(s+5)+K(s+a)=0.s(s+1)(s+2)(s+5)+K(s+a)=0.

展開得

s4+8s3+17s2+(10+K)s+Ka=0.s^4+8s^3+17s^2+(10+K)s+Ka=0.

(a) 穩定時 aa 與 KK 的可行區域

對特徵多項式

s4+8s3+17s2+(10+K)s+Kas^4+8s^3+17s^2+(10+K)s+Ka

建立 Routh 表:

s4117Kas3810+K0s2126−K8Ka0s1(126−K)(10+K)−64Ka126−K00s0Ka\begin{array}{c|ccc} s^4 & 1 & 17 & Ka\\ s^3 & 8 & 10+K & 0\\ s^2 & \dfrac{126-K}{8} & Ka & 0\\ s^1 & \dfrac{(126-K)(10+K)-64Ka}{126-K} &0&0\\ s^0 & Ka&& \end{array}

穩定條件為第一欄全部為正。對一般控制系統採用 K>0, a>0K>0,\ a>0,得到

K>0,K>0, 126−K>0,126-K>0, (126−K)(10+K)−64Ka>0.(126-K)(10+K)-64Ka>0.

所以穩定可行區域為

0<K<126,0<a<(126−K)(10+K)64K\boxed{ 0<K<126,\qquad 0<a<\frac{(126-K)(10+K)}{64K} }

邊界曲線為

a=(126−K)(10+K)64K.\boxed{ a=\frac{(126-K)(10+K)}{64K} }.

在 aa–KK 平面上,穩定區域位於該曲線下方,且限制在第一象限的 0<K<1260<K<126 內。

若不限定參數為正,數學上另有一個穩定分支:

−10<K<0,(126−K)(10+K)64K<a<0.-10<K<0,\qquad \frac{(126-K)(10+K)}{64K}<a<0.

但實際控制器增益與零點參數通常採用正值,因此主要答案為第一象限區域。


(b) 斜坡輸入的穩態誤差為 24%

系統具有一個位於原點的開迴路極點,因此為 I 型系統。

速度誤差常數為

Kv=lim⁡s→0sL(s).K_v=\lim_{s\to 0}sL(s).

代入 L(s)L(s):

Kv=lim⁡s→0K(s+a)(s+1)(s+2)(s+5)=Ka1⋅2⋅5=Ka10.K_v =\lim_{s\to0} \frac{K(s+a)}{(s+1)(s+2)(s+5)} =\frac{Ka}{1\cdot2\cdot5} =\frac{Ka}{10}.

輸入為

r(t)=At,r(t)=At,

其斜坡輸入的穩態誤差為

ess=AKv=10AKa.e_{\mathrm{ss}}=\frac{A}{K_v} =\frac{10A}{Ka}.

題目所稱「穩態為命令量的 24%」依控制題慣例解讀為斜坡穩態誤差為 0.24A0.24A,故

10AKa=0.24A.\frac{10A}{Ka}=0.24A.

消去 AA:

10Ka=0.24.\frac{10}{Ka}=0.24.

因此

Ka=100.24=1253\boxed{ Ka=\frac{10}{0.24}=\frac{125}{3} }

也就是

a=1253K.\boxed{ a=\frac{125}{3K} }.

此外,aa 與 KK 還必須同時滿足第 (a) 小題的穩定條件。

補充而言,若將題意嚴格解讀為輸出 y(t)y(t) 本身等於 r(t)r(t) 的 24%,則對穩定的 I 型系統並不成立,因為斜坡輸入下 y(t)/r(t)→1y(t)/r(t)\to1;本題標準解讀是斜坡穩態誤差設定為 24%24\%。


(c) a=10a=10 時的根軌跡

此時

L(s)=K(s+10)s(s+1)(s+2)(s+5).L(s)=\frac{K(s+10)}{s(s+1)(s+2)(s+5)}.

開迴路極點為

s=0, −1, −2, −5,s=0,\ -1,\ -2,\ -5,

開迴路零點為

s=−10.s=-10.

實軸根軌跡區段

根軌跡位於實軸上「右側開迴路極點與零點數目為奇數」的區段,因此:

(−1,0)\boxed{(-1,0)} (−5,−2)\boxed{(-5,-2)} (−∞,−10)\boxed{(-\infty,-10)}

漸近線

極點數為 n=4n=4,零點數為 m=1m=1,所以漸近線數目為

n−m=3.n-m=3.

漸近線重心為

σa=∑pi−∑zin−m=(0−1−2−5)−(−10)3=23.\sigma_a =\frac{\sum p_i-\sum z_i}{n-m} =\frac{(0-1-2-5)-(-10)}{3} =\frac{2}{3}.

漸近線角度為

θq=(2q+1)180∘3,q=0,1,2.\theta_q=\frac{(2q+1)180^\circ}{3}, \qquad q=0,1,2.

因此

🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊

第 2 題

Consider the following resistor-inductance-capacitance circuit
🖼️【此處有附圖,請對照原卷】
where eie_i is the applied voltage input and eoe_o is the voltage output.

(a). Please derive the electrical dynamics model and find the transfer function.
(b). Please represent the input eie_i and output eoe_o in terms of a state-space form.
(c). Please find the condition so that the system meet the under damped condition.
(d). Is this circuit possible to act as an amplifier for a dc input? Please provide your reason and detail proof.
(e). Can we apply the circuit to work as a low-pass filter? If so, determine the cut-off frequency represented in terms of R, L and C.

🖼️ 本題含圖表,以下為原卷對應頁面:
原卷第 1 頁

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

本題考查串聯 RLC 電路的:

  • Kirchhoff 電壓定律(KVL)
  • 電感與電容的元件關係式
  • 電路轉移函數
  • 狀態空間表示法
  • 二階系統的阻尼比與欠阻尼條件
  • 直流穩態分析
  • 低通濾波器與截止頻率

圖中為 LL、RR、CC 串聯電路,輸出電壓 eoe_o 取自電容兩端。


(a) 電氣動態模型與轉移函數

令串聯電流為 i(t)i(t),則電容電壓為輸出:

eo(t)=vC(t)e_o(t)=v_C(t)

由電容的電流—電壓關係:

i(t)=Cdeo(t)dti(t)=C\frac{de_o(t)}{dt}

依 KVL:

ei(t)=Ldi(t)dt+Ri(t)+eo(t)e_i(t)=L\frac{di(t)}{dt}+Ri(t)+e_o(t)

代入 i(t)=Ce˙o(t)i(t)=C\dot e_o(t),得

ei(t)=LCd2eo(t)dt2+RCdeo(t)dt+eo(t)e_i(t)=LC\frac{d^2e_o(t)}{dt^2} +RC\frac{de_o(t)}{dt}+e_o(t)

因此電路的電氣動態模型為

LCe¨o(t)+RCe˙o(t)+eo(t)=ei(t)LC\ddot e_o(t)+RC\dot e_o(t)+e_o(t)=e_i(t)

在零初始條件下取 Laplace transform:

(LCs2+RCs+1)Eo(s)=Ei(s)\left(LCs^2+RCs+1\right)E_o(s)=E_i(s)

所以轉移函數為

G(s)=Eo(s)Ei(s)=1LCs2+RCs+1G(s)=\frac{E_o(s)}{E_i(s)} =\frac{1}{LCs^2+RCs+1}

除以 LCLC 後可寫成標準二階形式:

G(s)=1LCs2+RLs+1LCG(s)= \frac{\dfrac{1}{LC}} {s^2+\dfrac{R}{L}s+\dfrac{1}{LC}}

(b) 狀態空間表示法

選取狀態變數為

x1=eo=vC,x2=ix_1=e_o=v_C,\qquad x_2=i

由電容關係式:

x˙1=1Cx2\dot x_1=\frac{1}{C}x_2

由 KVL:

ei=Li˙+Ri+eoe_i=L\dot i+Ri+e_o

整理得

x˙2=−1Lx1−RLx2+1Lei\dot x_2 =-\frac{1}{L}x_1-\frac{R}{L}x_2+\frac{1}{L}e_i

因此狀態方程式為

[x˙1x˙2]=[01C−1L−RL][x1x2]+[01L]ei\begin{bmatrix} \dot x_1\\ \dot x_2 \end{bmatrix} = \begin{bmatrix} 0 & \dfrac{1}{C}\\ -\dfrac{1}{L} & -\dfrac{R}{L} \end{bmatrix} \begin{bmatrix} x_1\\ x_2 \end{bmatrix} + \begin{bmatrix} 0\\ \dfrac{1}{L} \end{bmatrix}e_i

輸出方程式為

eo=[10][x1x2]+0⋅eie_o= \begin{bmatrix} 1&0 \end{bmatrix} \begin{bmatrix} x_1\\ x_2 \end{bmatrix} +0\cdot e_i

亦即

x˙=Ax+Bei\dot{\boldsymbol{x}}=A\boldsymbol{x}+B e_i eo=Cx+Deie_o=C\boldsymbol{x}+D e_i

其中

A=[01C−1L−RL],B=[01L],C=[10],D=0A= \begin{bmatrix} 0 & \dfrac{1}{C}\\ -\dfrac{1}{L} & -\dfrac{R}{L} \end{bmatrix}, \quad B= \begin{bmatrix} 0\\ \dfrac{1}{L} \end{bmatrix}, \quad C= \begin{bmatrix} 1&0 \end{bmatrix}, \quad D=0

(c) 欠阻尼條件

由轉移函數的分母:

LCs2+RCs+1=0LCs^2+RCs+1=0

除以 LCLC:

s2+RLs+1LC=0s^2+\frac{R}{L}s+\frac{1}{LC}=0

與標準二階系統特徵方程式

s2+2ζωns+ωn2=0s^2+2\zeta\omega_n s+\omega_n^2=0

比較可得

ωn=1LC\omega_n=\frac{1}{\sqrt{LC}}

以及

2ζωn=RL2\zeta\omega_n=\frac{R}{L}

因此

ζ=R2CL\zeta=\frac{R}{2}\sqrt{\frac{C}{L}}

欠阻尼的條件為

0<ζ<10<\zeta<1

所以

0<R2CL<10<\frac{R}{2}\sqrt{\frac{C}{L}}<1

對一般被動元件 R>0R>0、L>0L>0、C>0C>0 而言,條件可整理為

R<2LC\boxed{R<2\sqrt{\frac{L}{C}}}

或等價地寫成

R2C<4L\boxed{R^2C<4L}

此時系統極點為共軛複數極點:

🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊

第 3 題

For the open-loop system
KG(s)=K(s+1)s2(s+5)KG(s) = \frac{K(s+1)}{s^2 (s+5)}

(a). For K=1K = 1, Plot the Bode plot of G(s)G(s).
(b). Determine the system phase margin, if the negative unity feedback system is stable.
(c). Sketch the root locus for K>0K > 0.
(d). Determine the value of KK such that the complex conjugate closed-loop poles have a damping ratio of 0.5.

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

本題為經典的開迴路轉移函數頻域與時域分析綜合題,核心考點涵蓋:

  1. 波德圖(Bode Plot)之繪製:將開迴路轉移函數轉為波德標準式(時間常數形式),分析低頻漸近線斜率、轉折頻率(Corner Frequencies)與相角曲線變化。
  2. 相位邊界(Phase Margin, PM):利用增益交越頻率 ωgc\omega_{gc}(即 ∣KG(jωgc)∣=1|KG(j\omega_{gc})| = 1)定義求取相角,並依據 PM=180∘+∠KG(jωgc)\text{PM} = 180^\circ + \angle KG(j\omega_{gc}) 計算;同時須以羅斯準則(Routh-Hurwitz Criterion)確認閉迴路系統之穩定性。
  3. 根軌跡法(Root Locus):掌握開迴路極/零點分佈、實軸軌跡判別、漸近線角度與重心、分離點(Breakaway Point)以及虛軸交點等作圖法則。
  4. 極點配置與二階系統特性(Damping Ratio):利用阻尼比 ζ=0.5\zeta = 0.5 建立閉迴路二階複數極點標準型 s2+2ζωns+ωn2s^2 + 2\zeta\omega_n s + \omega_n^2,並與系統閉迴路特徵方程式進行係數比對求解增益 KK。

解題方法與詳細步驟

(a) 繪製 K=1K = 1 時 G(s)G(s) 之波德圖(Bode Plot)

將開迴路轉移函數改寫為波德標準形式(Bode Standard Form):

G(s)=s+1s2(s+5)=1+s5s2(1+s5)=0.2(1+s)s2(1+s5)G(s) = \frac{s+1}{s^2(s+5)} = \frac{1+s}{5s^2\left(1 + \frac{s}{5}\right)} = \frac{0.2(1+s)}{s^2\left(1 + \frac{s}{5}\right)}

將 s=jωs = j\omega 代入:

G(jω)=0.2(1+jω)(jω)2(1+jω5)G(j\omega) = \frac{0.2(1 + j\omega)}{(j\omega)^2\left(1 + j\frac{\omega}{5}\right)}
1. 幅度圖(Magnitude Plot)漸近線分析
  • 轉折頻率(Corner Frequencies):
    • 一階分子零點:ωz=1 rad/s\omega_{z} = 1\text{ rad/s}(斜率改變 +20 dB/dec+20\text{ dB/dec})
    • 一階分母極點:ωp=5 rad/s\omega_{p} = 5\text{ rad/s}(斜率改變 −20 dB/dec-20\text{ dB/dec})
  • 漸近線斜率變化:
    • ω<1 rad/s\omega < 1\text{ rad/s}(受原點二重極點 0.2(jω)2\frac{0.2}{(j\omega)^2} 支配):斜率為 −40 dB/dec-40\text{ dB/dec}。
      在 ω=1 rad/s\omega = 1\text{ rad/s} 處,低頻漸近線大小為 20log⁡10(0.2)≈−14 dB20\log_{10}(0.2) \approx -14\text{ dB}。
    • 1≤ω≤5 rad/s1 \le \omega \le 5\text{ rad/s}:斜率變為 −40+20=−20 dB/dec-40 + 20 = -20\text{ dB/dec}。
    • ω>5 rad/s\omega > 5\text{ rad/s}:斜率變為 −20−20=−40 dB/dec-20 - 20 = -40\text{ dB/dec}。
2. 相位圖(Phase Plot)分析

相角函數為:

∠G(jω)=−180∘+tan⁡−1(ω)−tan⁡−1(ω5)\angle G(j\omega) = -180^\circ + \tan^{-1}(\omega) - \tan^{-1}\left(\frac{\omega}{5}\right)
  • 關鍵頻率相角值:
    • ω→0+\omega \to 0^+:∠G(jω)→−180∘\angle G(j\omega) \to -180^\circ
    • ω=1 rad/s\omega = 1\text{ rad/s}:∠G(j1)=−180∘+45∘−tan⁡−1(0.2)≈−180∘+45∘−11.31∘=−146.31∘\angle G(j1) = -180^\circ + 45^\circ - \tan^{-1}(0.2) \approx -180^\circ + 45^\circ - 11.31^\circ = -146.31^\circ
    • ω=1×5=5≈2.24 rad/s\omega = \sqrt{1 \times 5} = \sqrt{5} \approx 2.24\text{ rad/s}(相角最大值發生處): ∠G(j5)=−180∘+tan⁡−1(5)−tan⁡−1(15)=−180∘+41.81∘=−138.19∘\angle G(j\sqrt{5}) = -180^\circ + \tan^{-1}(\sqrt{5}) - \tan^{-1}\left(\frac{1}{\sqrt{5}}\right) = -180^\circ + 41.81^\circ = -138.19^\circ
    • ω=5 rad/s\omega = 5\text{ rad/s}:∠G(j5)=−180∘+tan⁡−1(5)−45∘≈−146.31∘\angle G(j5) = -180^\circ + \tan^{-1}(5) - 45^\circ \approx -146.31^\circ
    • ω→∞\omega \to \infty:∠G(jω)→−180∘\angle G(j\omega) \to -180^\circ
3. 波德圖草圖與漸近線特徵
Magnitude (dB)
 ^
 |  \ (-40 dB/dec)
 |    \
 |      \ (w=1, -14dB)
 |--------*------------------------------------> w (rad/s, log scale)
 |         \ (-20 dB/dec)
 |          \ (w=5, -28dB)
 |            *============\ (-40 dB/dec)
 |                          \

Phase (deg)
 ^
 |--------------------------------------------- 0 deg
 |        /\ (w=sqrt(5), -138.2 deg)
 |       /  \
 |-180 -*----*--------------------------------- -180 deg
 |     w=0   w->inf
 v

(b) 求負回授系統的相位邊界(Phase Margin, PM)

1. 閉迴路系統穩定性驗證

特徵方程式(Characteristic Equation)為:

1+G(s)=0  ⟹  s2(s+5)+(s+1)=s3+5s2+s+1=01 + G(s) = 0 \implies s^2(s+5) + (s+1) = s^3 + 5s^2 + s + 1 = 0

建立羅斯表(Routh Table):

s311s251s15(1)−1(1)5=0.80s01\begin{array}{c|cc} s^3 & 1 & 1 \\ s^2 & 5 & 1 \\ s^1 & \frac{5(1) - 1(1)}{5} = 0.8 & 0 \\ s^0 & 1 & \end{array}

第一行元素皆為正數(1,5,0.8,1>01, 5, 0.8, 1 > 0),閉迴路系統為漸近穩定。

2. 計算增益交越頻率 ωgc\omega_{gc}

定義 ∣G(jωgc)∣=1|G(j\omega_{gc})| = 1:

ωgc2+1ωgc2ωgc2+25=1  ⟹  ωgc2+1=ωgc4(ωgc2+25)\frac{\sqrt{\omega_{gc}^2 + 1}}{\omega_{gc}^2 \sqrt{\omega_{gc}^2 + 25}} = 1 \implies \omega_{gc}^2 + 1 = \omega_{gc}^4(\omega_{gc}^2 + 25)

令 u=ωgc2>0u = \omega_{gc}^2 > 0,方程式展開為:

u3+25u2−u−1=0u^3 + 25u^2 - u - 1 = 0

求解正實根:

  • 當 u=0.220u = 0.220 時,0.2203+25(0.220)2−0.220−1≈0.0106+1.2100−1.2200=0.0006≈00.220^3 + 25(0.220)^2 - 0.220 - 1 \approx 0.0106 + 1.2100 - 1.2200 = 0.0006 \approx 0
  • 因此 ωgc=0.220≈0.469 rad/s\omega_{gc} = \sqrt{0.220} \approx 0.469\text{ rad/s}
3. 計算相位邊界 PM\text{PM}

將 ωgc=0.469 rad/s\omega_{gc} = 0.469\text{ rad/s} 代入相角函數:

∠G(jωgc)=−180∘+tan⁡−1(0.469)−tan⁡−1(0.4695)=−180∘+25.13∘−5.36∘=−160.23∘\begin{aligned} \angle G(j\omega_{gc}) &= -180^\circ + \tan^{-1}(0.469) - \tan^{-1}\left(\frac{0.469}{5}\right) \\ &= -180^\circ + 25.13^\circ - 5.36^\circ \\ &= -160.23^\circ \end{aligned}

相位邊界為:

PM=180∘+∠G(jωgc)=180∘−160.23∘=19.77∘\text{PM} = 180^\circ + \angle G(j\omega_{gc}) = 180^\circ - 160.23^\circ = 19.77^\circ

(c) 繪製 K>0K > 0 時之根軌跡(Root Locus)

開迴路轉移函數為:

KG(s)=K(s+1)s2(s+5)KG(s) = \frac{K(s+1)}{s^2(s+5)}
  • 開迴路極點(n=3n=3):p1,p2=0p_1, p_2 = 0(二重極點),p3=−5p_3 = -5
  • 開迴路零點(m=1m=1):z1=−1z_1 = -1
  • 根軌跡分支數:n=3n = 3 條;趨近於無限遠之分支數:n−m=2n - m = 2 條
🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊

第 4 題

Plot the Nyquist plot of the system KG(s)KG(s) with K=10K = 10, also determine the intersection point of the Nyquist plot with the negative real axis. (10%) Determine whether the negative unity feedback system is stable using the Nyquist stability criterion. (5%)
KG(s)=K(s+10)2s2(s−1)KG(s) = \frac{K(s+10)^2}{s^2(s-1)}

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

本題考查兩個重點:

  1. 以頻率響應 KG(jω)KG(j\omega) 描繪 Nyquist 圖。
  2. 利用 Nyquist 穩定判據判斷負單位回授系統是否穩定。

開迴路傳遞函數為

L(s)=KG(s)=10(s+10)2s2(s−1).L(s)=KG(s)=\frac{10(s+10)^2}{s^2(s-1)}.

負單位回授的閉迴路特徵方程式為

1+L(s)=0.1+L(s)=0.

Nyquist 判據中,需注意 L(s)L(s) 在原點有二重極點,因此 Nyquist 路徑必須繞開原點的小半圓凹口。


解題方法:求取 Nyquist 曲線

令 s=jωs=j\omega,其中 ω>0\omega>0:

L(jω)=10(10+jω)2(jω)2(jω−1).L(j\omega) = \frac{10(10+j\omega)^2}{(j\omega)^2(j\omega-1)}.

先計算分子與分母:

(10+jω)2=100−ω2+j20ω,(10+j\omega)^2=100-\omega^2+j20\omega,

且

(jω)2(jω−1)=−ω2(−1+jω)=ω2(1−jω).(j\omega)^2(j\omega-1) = -\omega^2(-1+j\omega) = \omega^2(1-j\omega).

因此

L(jω)=10(100−ω2+j20ω)ω2(1−jω).L(j\omega) = \frac{10(100-\omega^2+j20\omega)} {\omega^2(1-j\omega)}.

分母有理化:

L(jω)=10(100−ω2+j20ω)(1+jω)ω2(1+ω2).L(j\omega) = \frac{10(100-\omega^2+j20\omega)(1+j\omega)} {\omega^2(1+\omega^2)}.

展開後得到

L(jω)=10(100−21ω2)ω2(1+ω2)+j10(120−ω2)ω(1+ω2).L(j\omega) = \frac{10(100-21\omega^2)} {\omega^2(1+\omega^2)} + j\frac{10(120-\omega^2)} {\omega(1+\omega^2)}.

故 Nyquist 曲線的實部與虛部分別為

Re⁡{L(jω)}=10(100−21ω2)ω2(1+ω2),\operatorname{Re}\{L(j\omega)\} = \frac{10(100-21\omega^2)} {\omega^2(1+\omega^2)}, Im⁡{L(jω)}=10(120−ω2)ω(1+ω2).\operatorname{Im}\{L(j\omega)\} = \frac{10(120-\omega^2)} {\omega(1+\omega^2)}.

與負實軸的交點

Nyquist 曲線與負實軸相交時,必須滿足

Im⁡{L(jω)}=0.\operatorname{Im}\{L(j\omega)\}=0.

由於 ω>0\omega>0,可得

120−ω2=0,120-\omega^2=0,

因此

ω=120=230 rad/s.\omega=\sqrt{120}=2\sqrt{30}\ \text{rad/s}.

代回實部:

Re⁡{L(jω)}=10(100−21ω2)ω2(1+ω2).\operatorname{Re}\{L(j\omega)\} = \frac{10(100-21\omega^2)} {\omega^2(1+\omega^2)}.

由 ω2=120\omega^2=120:

Re⁡{L(jω)}=10(100−21⋅120)120(1+120)\operatorname{Re}\{L(j\omega)\} = \frac{10(100-21\cdot120)} {120(1+120)} =10(100−2520)120⋅121=−2420014520=−53.= \frac{10(100-2520)}{120\cdot121} = -\frac{24200}{14520} = -\frac53.

所以負實軸交點為

−53+j0.\boxed{-\frac53+j0}.

Nyquist 圖的重要位置與走向

當 ω→0+\omega\to0^+

由傳遞函數可知原點有二重極點,因此

Re⁡{L(jω)}→+∞,\operatorname{Re}\{L(j\omega)\}\to+\infty,
🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊
