112 年 國立中正大學電機工程學系碩士班電力與電能處理甲組《電路學》

📄 試題原卷 免費註冊後即可對照原始考卷 PDF免費註冊

第 1 題20 分

  1. For maximum power transfer, what is the value of RLR_L? and the max power PmaxP_{max} on RLR_L? (20%)
    🖼️【此處有附圖,請對照原卷】
    (The circuit diagram shows a 12V voltage source in series with a 6kΩ6k\Omega resistor. This combination is connected in parallel with a 3mA current source and a 0.5Vx0.5V_x voltage source. VxV_x is the voltage across the 2kΩ2k\Omega resistor, which is in series with the 3mA3mA current source. The load resistor RLR_L is connected in parallel with the 2kΩ2k\Omega resistor.)
🖼️ 本題含圖表,以下為原卷對應頁面:

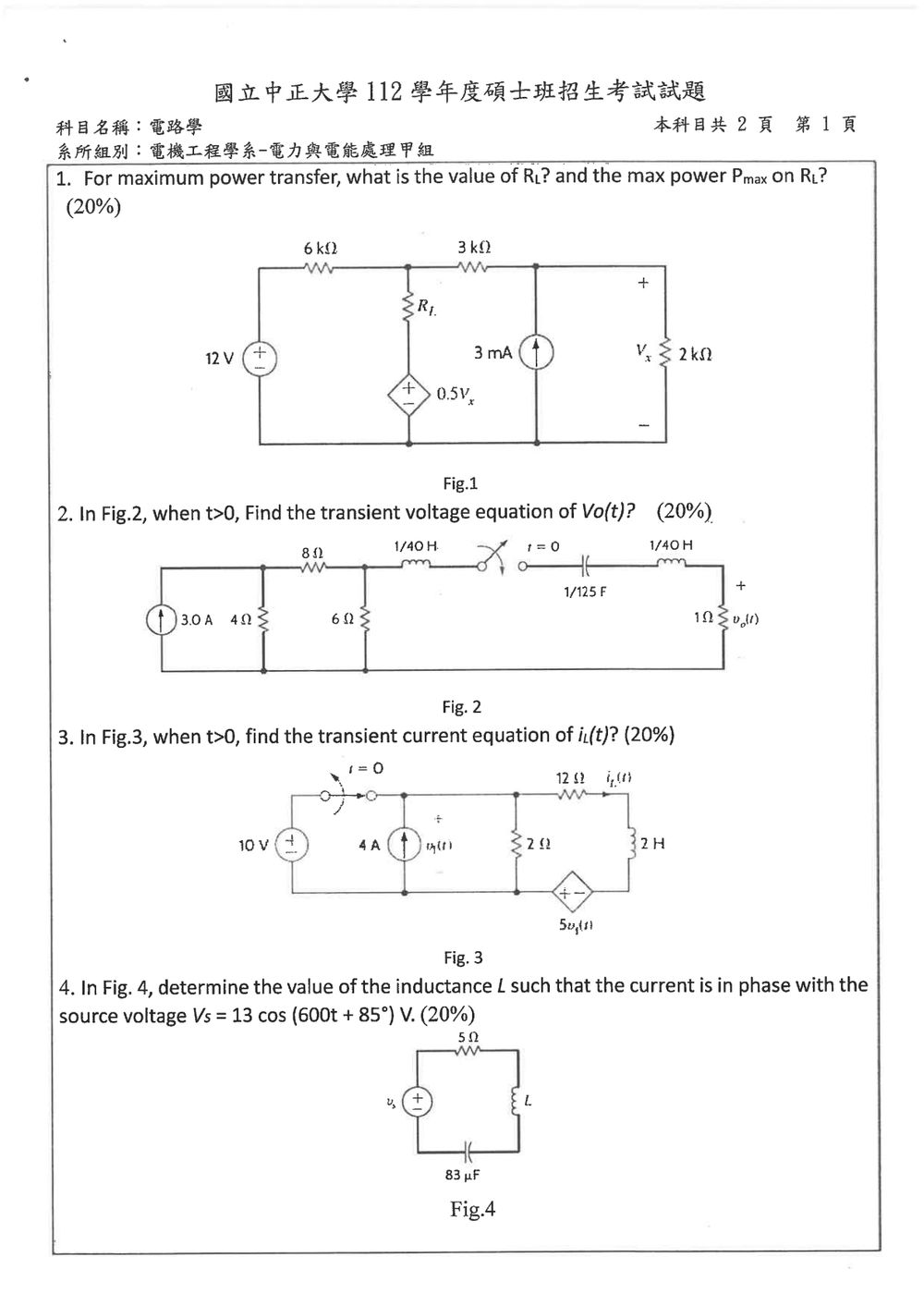

原卷第 2 頁

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

本題考查最大功率轉移定理。若負載端看到的戴維寧等效為 VthV_{\text{th}} 串聯 RthR_{\text{th}},則負載獲得最大功率的條件為

RL=RthR_L=R_{\text{th}}

最大功率為

Pmax⁡=Vth24RthP_{\max}=\frac{V_{\text{th}}^2}{4R_{\text{th}}}

由於電路含有受控電壓源,直接關閉獨立源求電阻較不方便,因此採用端口電壓—電流關係求戴維寧等效。


建立端口關係

令中間上方節點電壓為 vav_a,右側節點電壓為 VxV_x。圖中受控電壓源電壓為

vb=0.5Vxv_b=0.5V_x

令通過 RLR_L 的電流由上往下為 ii,則 RLR_L 兩端電壓為

vRL=va−vbv_{RL}=v_a-v_b

在右側節點套用 KCL:

Vx−va3 kΩ+Vx2 kΩ−3 mA=0\frac{V_x-v_a}{3\,\text{k}\Omega} +\frac{V_x}{2\,\text{k}\Omega} -3\,\text{mA}=0

以 kΩ\text{k}\Omega、mA、V 為單位,整理得

2(Vx−va)+3Vx−18=02(V_x-v_a)+3V_x-18=0

因此

Vx=0.4va+3.6V_x=0.4v_a+3.6

所以受控電壓源上端電壓為

vb=0.5Vx=0.2va+1.8v_b=0.5V_x=0.2v_a+1.8

在中間節點 vav_a 套用 KCL:

va−126+va−Vx3+i=0\frac{v_a-12}{6} +\frac{v_a-V_x}{3} +i=0

代入 Vx=0.4va+3.6V_x=0.4v_a+3.6:

va−126+0.6va−3.63+i=0\frac{v_a-12}{6} +\frac{0.6v_a-3.6}{3} +i=0

整理後得到

i=3.2−1130vai=3.2-\frac{11}{30}v_a

故

va=9611−3011iv_a=\frac{96}{11}-\frac{30}{11}i

而 RLR_L 兩端電壓為

vRL=va−vb=va−0.5Vxv_{RL}=v_a-v_b =v_a-0.5V_x

代入上述關係:

vRL=0.8va−1.8v_{RL} =0.8v_a-1.8

因此

🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊

第 2 題20 分

  1. In Fig.2, when t>0t>0, Find the transient voltage equation of Vo(t)V_o(t)? (20%)
    🖼️【此處有附圖,請對照原卷】
    (The circuit diagram shows a 3.0A current source in series with an 8 Ohm resistor. This combination is connected in parallel with a 6 Ohm resistor. This parallel combination is then connected in series with a switch. The switch is connected to a 1/40 H inductor, a 1/125 F capacitor, and a 1.0 Ohm resistor, all in series. Vo(t)V_o(t) is the voltage across the 1.0 Ohm resistor.)
🖼️ 本題含圖表,以下為原卷對應頁面:
原卷第 2 頁

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

本題考查二階串聯 RLC 電路的暫態響應,使用:

  • 戴維寧等效電路
  • 電感電流與電容電壓的連續性
  • 二階電路自然頻率與特徵根
  • 輸出電壓 vo(t)v_o(t) 與串聯電流的關係

依圖示,開關於 t=0t=0 閉合。

解題方法

1. 求左側電路的戴維寧等效

開關右側開路時,8 Ω8\,\Omega 無電流,因此其壓降為零。

左側 3 A3\,\text{A} 電流源與 4 Ω4\,\Omega 電阻並聯,節點電壓為

Vth=3(4)=12 VV_{\text{th}}=3(4)=12\text{ V}

將獨立電流源關閉,即開路,則戴維寧電阻為

Rth=8+(4∥6)=8+4×64+6=10.4 ΩR_{\text{th}} =8+(4\parallel 6) =8+\frac{4\times 6}{4+6} =10.4\,\Omega

因此,t>0t>0 時右側串聯電路的總電阻為

R=Rth+1=11.4 ΩR=R_{\text{th}}+1=11.4\,\Omega

其中 1 Ω1\,\Omega 為輸出電阻。

2. 初始條件

在 t<0t<0 時開關斷開,右側 RLC 電路沒有獨立電源,穩態時

iL(0−)=0,vC(0−)=0i_L(0^-)=0,\qquad v_C(0^-)=0

由電感電流及電容電壓的連續性:

iL(0+)=0,vC(0+)=0i_L(0^+)=0,\qquad v_C(0^+)=0

因為 vo(t)v_o(t) 跨接於 1 Ω1\,\Omega 電阻上,

vo(0+)=1⋅i(0+)=0v_o(0^+)=1\cdot i(0^+)=0

在 t=0+t=0^+ 時,由 KVL:

12=Ldidt+Ri+vC12=L\frac{di}{dt}+Ri+v_C

代入 L=140 HL=\frac{1}{40}\,\text{H}、i(0+)=0i(0^+)=0、vC(0+)=0v_C(0^+)=0:

didt∣0+=121/40=480 A/s\left.\frac{di}{dt}\right|_{0^+} =\frac{12}{1/40} =480\text{ A/s}

3. 求特徵根

電路參數為

🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊

第 3 題20 分

  1. In Fig.3, when t>0t>0, find the transient current equation of i1(t)i_1(t)? (20%)
    🖼️【此處有附圖,請對照原卷】
    (The circuit diagram shows a 10 V voltage source in series with a 4 A current source. This combination is connected in parallel with a 12 Ohm resistor. This parallel combination is then connected in series with a switch. The switch is connected to a 2 Ohm resistor and a 2 H inductor, all in series. i1(t)i_1(t) is the current flowing through the 2 Ohm resistor.)
🖼️ 本題含圖表,以下為原卷對應頁面:
原卷第 2 頁

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

本題考查一階 RLRL 暫態電路,使用:

  • 電感電流連續性:i1(0+)=i1(0−)i_1(0^+)=i_1(0^-)
  • t>0t>0 時以節點分析與 KVL 建立微分方程
  • 一階響應公式:
i1(t)=i1(∞)+[i1(0+)−i1(∞)]e−t/τi_1(t)=i_1(\infty)+\left[i_1(0^+)-i_1(\infty)\right]e^{-t/\tau}

依原圖,i1(t)i_1(t) 的箭頭位於 12Ω12\Omega 電阻支路,方向由左向右;下方受控電壓源標示為 5i1(t)5i_1(t)。

一、求初始電流 i1(0−)i_1(0^-)

t<0t<0 時開關閉合,左側 10 V10\text{ V} 電壓源接入,因此上方節點電壓為

v(0−)=10 Vv(0^-)=10\text{ V}

直流穩態時電感視為短路。沿右側支路由上往下套用 KVL:

10=12i1(0−)−5i1(0−)10=12i_1(0^-)-5i_1(0^-)

因此

10=7i1(0−)10=7i_1(0^-) i1(0−)=107 Ai_1(0^-)=\frac{10}{7}\text{ A}

由電感電流連續性:

i1(0+)=i1(0−)=107 Ai_1(0^+)=i_1(0^-)=\frac{10}{7}\text{ A}

二、求 t>0t>0 的微分方程

t>0t>0 時開關打開,10 V10\text{ V} 電壓源與右側電路分離。

令上方節點對下方參考節點的電壓為 v(t)v(t)。由右側支路套用 KVL:

v(t)=12i1(t)+2di1(t)dt−5i1(t)v(t)=12i_1(t)+2\frac{di_1(t)}{dt}-5i_1(t)

整理得

v(t)=7i1(t)+2di1(t)dtv(t)=7i_1(t)+2\frac{di_1(t)}{dt}

在上方節點套用 KCL。4 A4\text{ A} 電流源向節點注入電流,因此

4=i1(t)+v(t)24=i_1(t)+\frac{v(t)}{2}

所以

v(t)=8−2i1(t)v(t)=8-2i_1(t)

代入前式:

🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊

第 4 題20 分

  1. In Fig. 4, determine the value of the inductance L such that the current is in phase with the source voltage Vs=13cos⁡(600t+85∘)VV_s = 13 \cos (600t + 85^\circ) V. (20%)
    🖼️【此處有附圖,請對照原卷】
    (The circuit diagram shows a voltage source VsV_s in series with a 5Ω5 \Omega resistor and an inductor L. A capacitor with a capacitance of 83μF83 \mu F is connected in parallel with the inductor L. The current ii flows from the voltage source through the series combination.)
🖼️ 本題含圖表,以下為原卷對應頁面:
原卷第 2 頁

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

圖 4 中,5 Ω5\,\Omega 電阻、電感 LL 與電容 C=83 μFC=83\,\mu\text{F} 為串聯電路。要使電流與電壓源同相,總阻抗必須為純電阻,因此總電抗為零:

XL−XC=0X_L-X_C=0

其中

XL=ωL,XC=1ωCX_L=\omega L,\qquad X_C=\frac{1}{\omega C}

題目給定

Vs=13cos⁡(600t+85∘) VV_s=13\cos(600t+85^\circ)\text{ V}

故角頻率為

ω=600 rad/s\omega=600\ \text{rad/s}

解題方法

串聯電路的總阻抗為

Z=5+j(ωL−1ωC)Z=5+j\left(\omega L-\frac{1}{\omega C}\right)

電流相位相對於電壓源為

∠I=∠Vs−∠Z\angle I=\angle V_s-\angle Z

欲使電流與電壓源同相,必須有

∠Z=0∘\angle Z=0^\circ

因此虛部為零:

ωL−1ωC=0\omega L-\frac{1}{\omega C}=0

整理得

🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊

第 5 題20 分

  1. In Fig. 5, please find IoI_o? (20%)
    🖼️【此處有附圖,請對照原卷】
    (The circuit diagram shows a complex AC circuit with multiple voltage sources, current sources, and impedances. The goal is to find the current IoI_o. The circuit includes j1 Ohm, 1 Ohm, 6/0 V, 1 Ohm, 2/0 A, V1, V2, 1 Ohm, -j1 Ohm.)
🖼️ 本題含圖表,以下為原卷對應頁面:

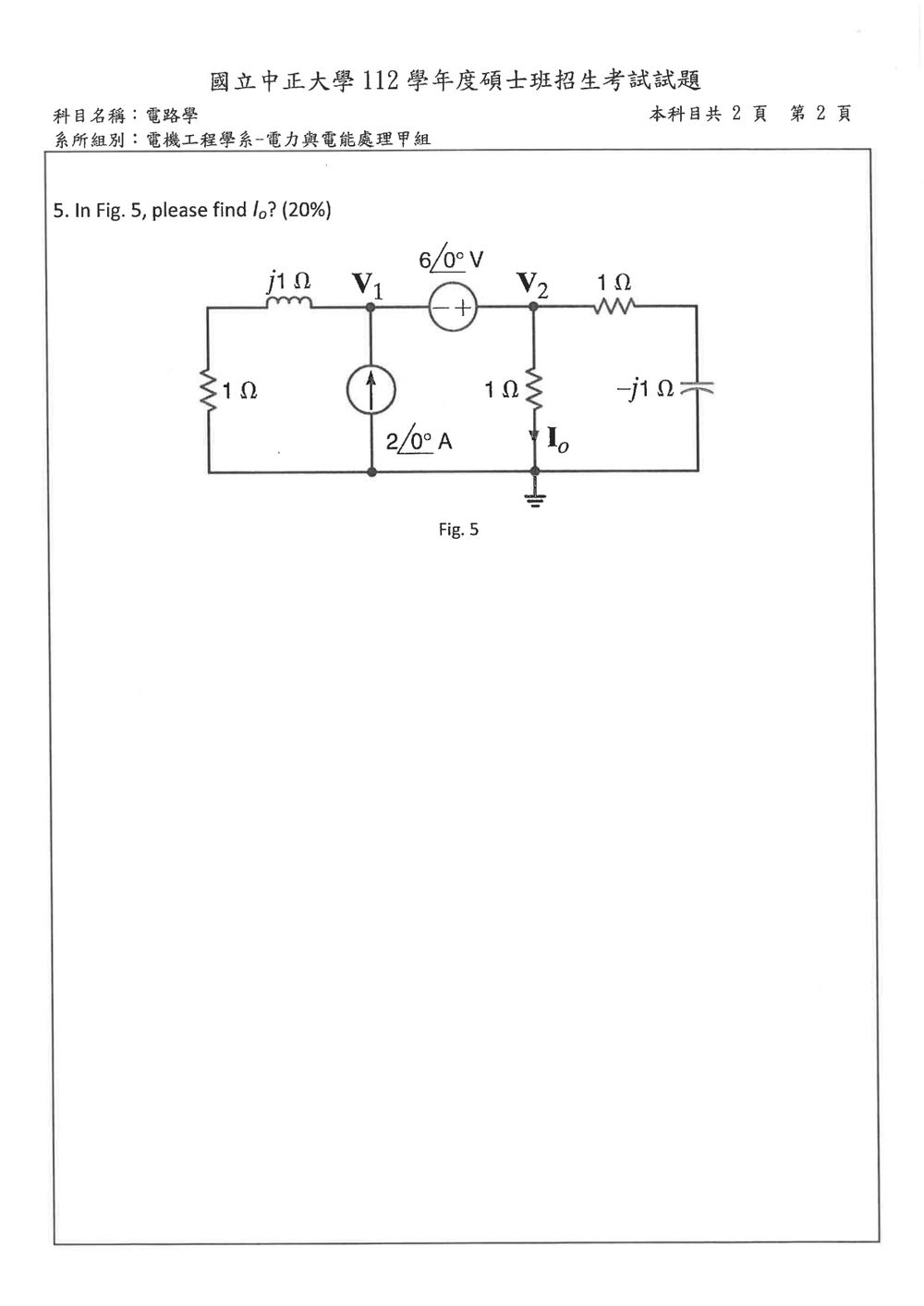

原卷第 3 頁

登入後即可作答並保存紀錄。

這一題的完整詳解

核心觀念

本題考查交流穩態相量電路的:

  • 阻抗串聯等效
  • 電壓源兩端的電壓約束
  • 超節點(supernode)分析
  • 歐姆定律求支路電流

以下以接地點為參考,且依圖中 IoI_o 向下定義。

解題方法

左側由 V1V_1 看向接地,包含 j1 Ωj1\,\Omega 與 1 Ω1\,\Omega 串聯,因此其等效阻抗為

ZL=1+jZ_L=1+j

右側由 V2V_2 看向接地,包含 1 Ω1\,\Omega 與 −j1 Ω-j1\,\Omega 串聯,因此其等效阻抗為

ZR=1−jZ_R=1-j

由於 V1V_1 與 V2V_2 之間有電壓源,使用超節點。圖中電壓源左端為負、右端為正,因此

V2−V1=6∠0∘=6V_2-V_1=6\angle 0^\circ=6

電流源由接地流向超節點,注入電流為 2∠0∘=22\angle0^\circ=2 A。對超節點套用 KCL:

V11+j+V21−j+V21=2\frac{V_1}{1+j}+\frac{V_2}{1-j}+\frac{V_2}{1}=2

化簡導納:

11+j=1−j2\frac{1}{1+j}=\frac{1-j}{2} 11−j=1+j2\frac{1}{1-j}=\frac{1+j}{2}

因此

(1−j2)V1+(1+j2+1)V2=2\left(\frac{1-j}{2}\right)V_1+ \left(\frac{1+j}{2}+1\right)V_2=2

即

🔒

後續完整解題步驟與【答案】

免費註冊,享三天全站完整詳解閱覽。

免費註冊
